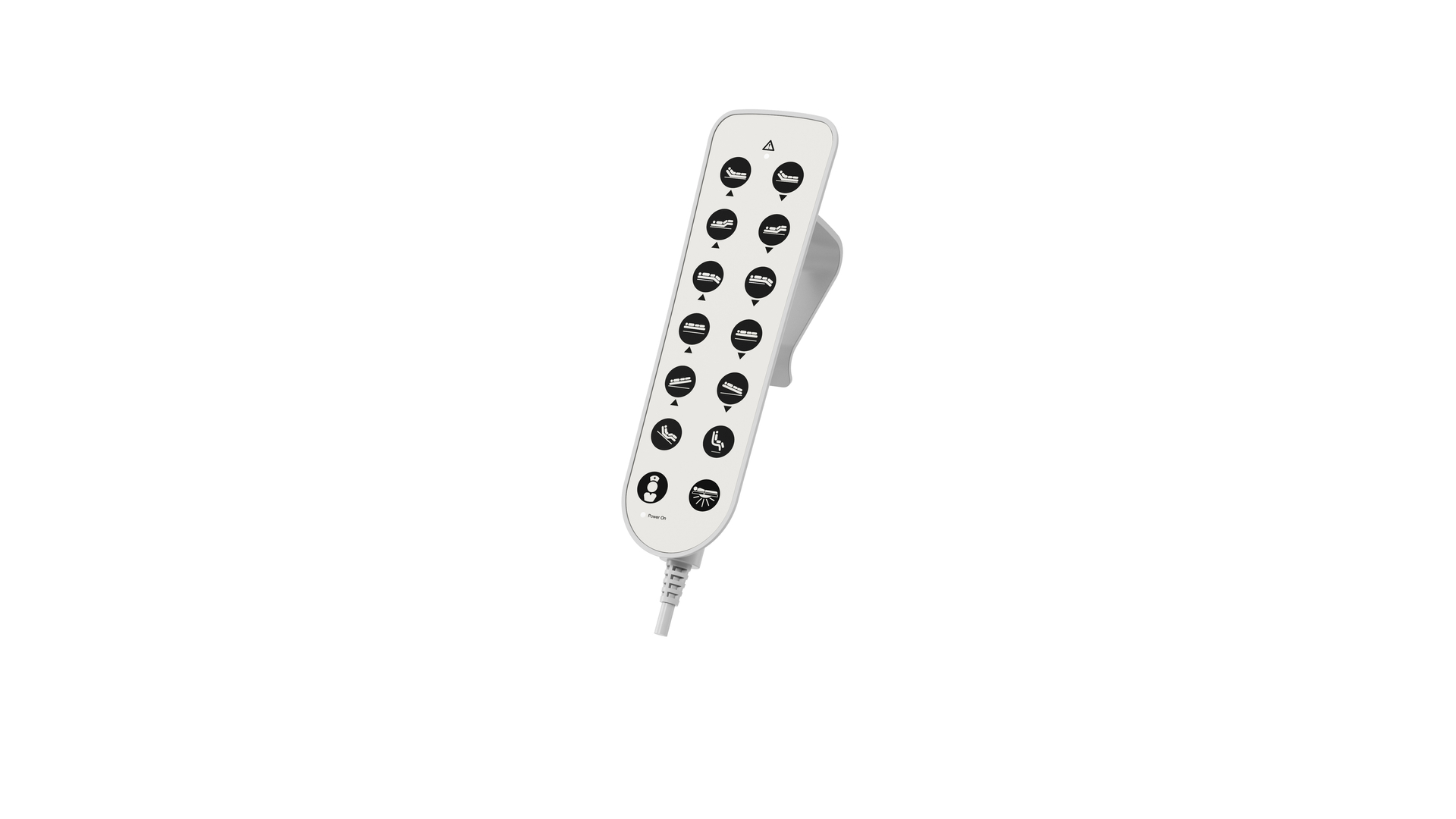

IPROXX 3

Versatility combined with a slim design

The robust IPROXX 3 handset is perfect for use in hospital and nursing beds. First of all, this product is very versatile: the handset can be used for multiple drives and can be configured with a fully integrated LCD with eight keys. The display makes operations very user-friendly and intuitive. The handset is optionally available with 14 keys. A function LED ensures that the device can be operated with clarity and simplicity.
Secondly, the IPROXX 3 features a slim and simple design, which fits perfectly into the medical environment. The standard-compliant keypad has a smooth surface so it is much easier to clean the handset.

Safety is first and foremost

The IPROXX 3 is available as a custom configuration with an integrated mechanical or programmable multi-level locking function. This feature locks out any input or entries, thus preventing the bed from being adjusted – and ensuring improved safety. The handset also features single-fault protection, which prevents dangerous operating states in the event of a controller malfunction or failure of the safety module.
With protection class IPX4, the handset is also protected against solid foreign bodies with a diameter of less than one millimetre and against splash water from all sides. This product can be upgraded to protection class IPX6 on request.
Further configuration options include a hook for hanging the handset and customer-specific printing and foil designs.

  • The IPROXX 3 combines robustness and versatility with a sleek, elegant design and the many possibilities offered by a fully integrated LCD display.

Customer benefits

Up to 14 keys or 2.5" display

Suitable for multiple drives

Standard-compliant keypad with smooth surface for easy cleaning

Configuration options: integrated mechanical or programmable multi-level locking function

Standard configurations

Performance characteristics

Control type

Relay control, DCC 2.0

Displays

LED, backlight
Combined power on/charge level indicator

Number of keys

Max. 14 keys

Drives

Suitable for up to 5 drives, or any number of drives (for the DCC 2.0)

Surface

Smooth surface for easy cleaning

Protection degree

IPX4

Safety

Single-fault protection

Housing colour

Grey RAL 7035

Extra configurations

Attachment mount

Hook

Display

2.5" display (max. 8 keys)

Customised printing

Customised foil design is available on request

Configuration options

Integrated mechanical or programmable multi-level locking function

Protection degree

IPX6

Additional characteristics

Relative humidity

30% – 75%

Ambient temperatures

+10 °C – +40 °C
