MB02

The MB02 is a compact unit for controlling two drives in height-adjustable desks for the office sector. It comes with the standard feature of collision detection for protecting system components. This can be customized and programmed by the operator in steps to fit requirements. There are also up to three customizable memory positions (depending on the handset).

Additional functionality, such as digital height display or custom-programmable memory positions, can be implemented together with the optional controls.

Customer benefits

Low standby power

Up to three customizable memory positions (depending on the handset)

System protection ensured with collision detection

Container-Stop and Shelf-Stop

Soft, start and stop

Plug detection

Cost-effective system for 4 drives (cascading)

Standard configurations

Input voltage

DC25 -29V

Standby

0.1 W

Duty cycle

2 min ON (120 W) / 18 min OFF

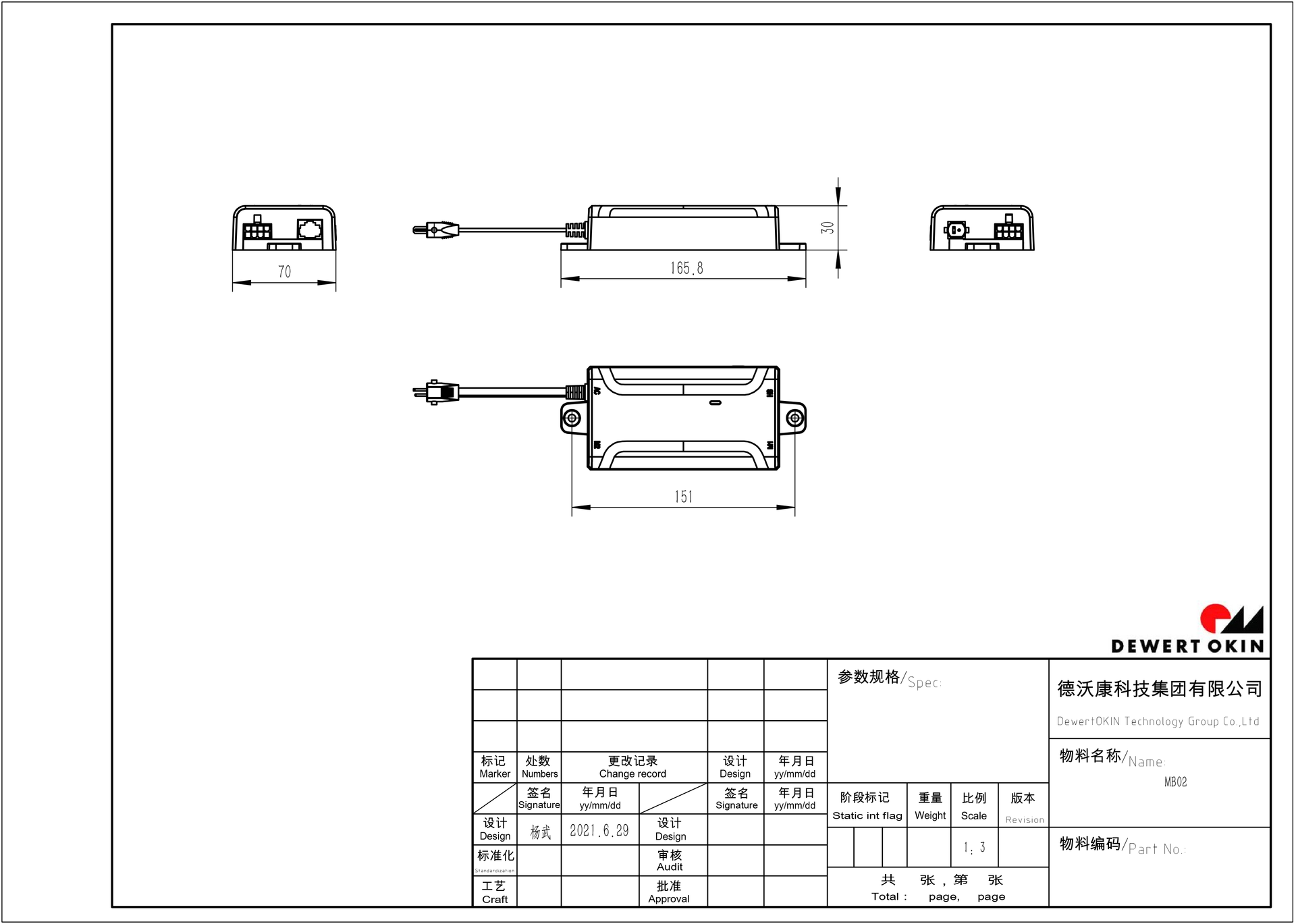

Dimensions (L × W × H)

166 mm x 70 mm x 30 mm

Weight

360g

Environmental conditions during operation

0 °C to +40 °C
at 5 % to 90 % relative humidity (non-condensing)

Environmental conditions during transport and storage

-25 °C to + 70 °C
at 5 % to 80 % relative humidity (non-condensing)

Protection class based on IEC 60529

IP 20

Standards and guidelines

EN 60335-1:2012 (IEC 60335-1:2010 fifth edition)
RoHS 2002/95/EC
LVD Directive 2014/35/EC
Machinery Directive 2006/42/EC
UL 60950-1 2nd edition

ESD interference resistance according to EN 61000-6-2

Contact discharge 4 kV
Air discharge 8 kV

Compatibility

The MB02 control unit available with specific parametrization to combine with all DD and ID lifting column types. It is intended for use with 3-leg office desks
