DS2.471.3
The complete solution for height-adjustable desks
Ergonomic furniture and the drive technology within are fundamental for modern offices. OKIN offers the proper solutions, such as the reliable, versatile DS2.471.3 desk system. This set includes two lifting columns from the DD series, frame components and the table feet. Customers can choose from a variety of OKIN products for the control unit. The variable-length table frame consists of a multi-part tubular steel frame with profiles attached to the sides. The colour of the table system corresponds to the respective lifting columns (black, white or silver) which ensure a design-optimized appearance.
Reliably meeting all requirements
Versatility and safety are the key characteristics of the DS2.471.3. The length of the frame can be smoothly adjusted to fit different tabletops. Suitable tops with dimensions between 1,100 and 1,800 mm are possible. The OKIN table frames are also subjected to demanding internal load tests. These products are certified according to EN 527 and optionally DIN FB 147. This continually ensures the strength and stability of the table systems.
Customer benefits
Multi-part tubular steel frame with side profiles (frame length is variable) |
|
Table systems with 2 lifting columns (optional 2x2 bench systems) |
|
Complies with international standards, e.g. DIN EN 527 (optionally also DIN FB 147) |
|
Powder coating corresponds to the colour of the lifting column |

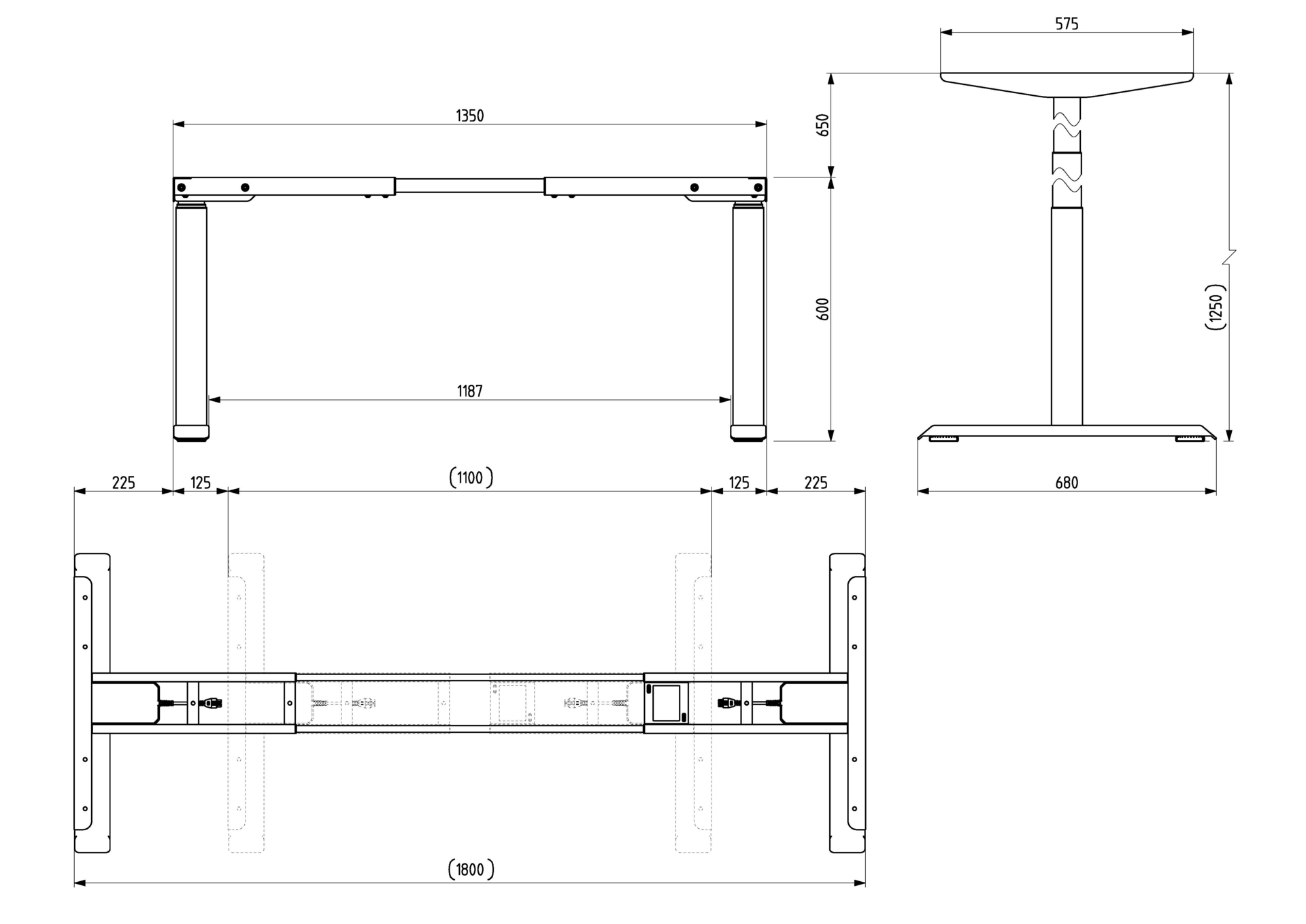

Standard configurations
Technical specifications |
|
|---|---|
Adjustment load |
Max. 1200 N / 270 lbs pressure |
Adjustment speed* |
35 mm (1.38") / sec. |
Type of lifting column |
DD471.3 |
Height, min. |
690 mm / 27,17" |
Height, max. |
1190 mm / 46,85" |
Length, min. |
1100 mm / 43,31" |
Length, max. |
1800 mm / 70,87" |
Width of foot |
682 mm |
Width of side profile |
575 mm |
Ambient temperatures |
+10 °C – +40 °C |
Housing colour |
black RAL 9005 silver RAL 9006 white RAL 9016 |
*Depending on the drive configuration and the control components being used
