DS2.441.3

Two-leg desk system with two motors

Everything from a single source: This high-quality DS2.441.3 desk system includes two lifting columns from the DD series, frame components and the table feet together in a set. The drives can be optionally operated using one of OKIN's control units. The variable-length table frame consists of a multi-part tubular steel frame with profiles attached to the sides. They are also attractive. The product's powder coating can be chosen to match the colour of the lifting columns: black, white or silver.

Focussed on the key requirements

Safety and versatility play a paramount role at OKIN – that is why the table frames for the lifting columns from the DD series comply with both requirements. In addition, the length of the frame is smoothly adjustable for different tabletops in a range between 1,100 and 1,800 mm. The OKIN table frames are also subjected to demanding internal load tests. These products are certified according to EN 527 and optionally DIN FB 147 – so that the strength and stability of the table systems are guaranteed. The lifting force of the entire system is a powerful 1,200 N. The adjustment speed is 35 mm/s.

Customer benefits

Multi-part tubular steel frame with side profiles (frame length is variable)

Stable table system with 2 lifting columns

Complies with international standards, e.g. DIN EN 527 (optionally also DIN FB 147)

Powder coating corresponds to the colour of the lifting column

Standard configurations

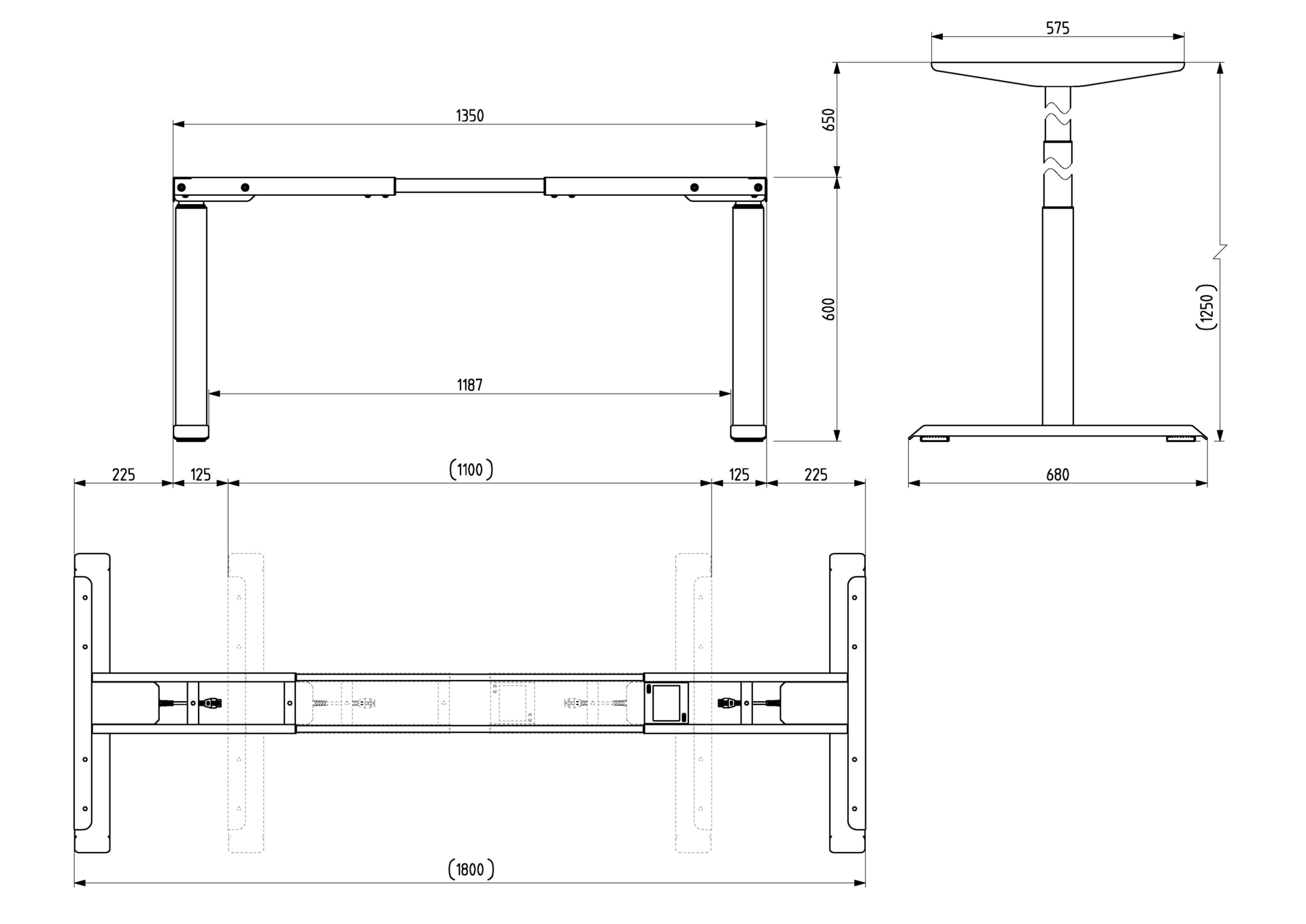

Technical specifications

Adjustment load

Max. 1200 N / 270 lbs pressure

Adjustment speed*

35 mm (1.38") / sec.

Type of lifting column

DD441.3

Height, min.

600 mm / 23.62''

Height, max.

1250 mm / 49.21''

Length, min.

1100 mm / 43.31''

Length, max.

1800 mm / 70.87''

Width of foot

680 mm

Width of side profile

575 mm

Ambient temperatures

+10 °C – +40 °C

Housing colour

silver RAL 9006, black RAL 9005, white RAL 9016

*Depending on the drive configuration and the control components being used
